PM2203.801NLT

PulseLarsen Antenna
  • Lifecycle status Active
  • RoHS RoHS Compliant
  • DescriptionFIXED IND 800NH 13.1A 5.65 MOHM
  • CategoryFixed Inductors
  • ECAD Model
  • Share
In Stock: 172

Can ship immediately

Pricing:
  • 1$1.14235
  • 2,000$1.14235

Quote It

Technical Details

  • Series:PM2203.XXXNLT
  • Package:Tape & Reel (TR)
  • Part Status:Active
  • Type:-
  • Material - Core:-
  • Inductance:800 nH
  • Tolerance:±20%
  • Current Rating (Amps):13.1 A
  • Current - Saturation (Isat):20A
  • Shielding:Unshielded
  • DC Resistance (DCR):5.65mOhm Max



  • Q @ Freq:-
  • Frequency - Self Resonant:-
  • Ratings:AEC-Q200
  • Operating Temperature:-55°C ~ 155°C
  • Inductance Frequency - Test:100 kHz
  • Features:-
  • Mounting Type:Surface Mount
  • Package / Case:Nonstandard
  • Supplier Device Package:SMD
  • Size / Dimension:0.217" L x 0.209" W (5.50mm x 5.30mm)
  • Height - Seated (Max):0.122" (3.10mm)

Related Products


SPM5020T-2R2M-CA

FIXED IND 2.2UH 4.2A 51.4 MOHM

  • 1: $1.03920

SPM5020T-1R5M-CA

FIXED IND 1.5UH 5A 33.4 MOHM SMD

SPM5020T-1R5M-CA Datasheet
  • 1: $1.03920
  • 500: $1.03920

SPM5020T-3R3M-CA

FIXED IND 3.3UH 3.8A 66.3 MOHM

SPM5020T-3R3M-CA Datasheet
  • 1: $1.03920
  • 500: $1.03920

SPM5020T-1R0M-CA

FIXED IND 1UH 6A 25.3 MOHM SMD

SPM5020T-1R0M-CA Datasheet
  • 1: $1.03920
  • 500: $1.03920

SPM5020T-R47M-CA

FIXED IND 470NH 6.9A 18.5 MOHM

SPM5020T-R47M-CA Datasheet
  • 1: $1.03920
  • 500: $1.03920

SPM5020T-100M-CA02

FIXED IND 10UH 2.3A 174.8 MOHM

SPM5020T-100M-CA02 Datasheet
  • 1: $1.03920
  • 500: $1.03920

SPM5020T-1R5M-CA02

FIXED IND 1.5UH 5.9A 24.8 MOHM

SPM5020T-1R5M-CA02 Datasheet
  • 1: $1.03920
  • 500: $1.03920

SPM5020T-2R2M-CA02

FIXED IND 2.2UH 4.6A 40.7 MOHM

SPM5020T-2R2M-CA02 Datasheet
  • 1: $1.03920
  • 500: $1.03920

SPM5020T-3R3M-CA02

FIXED IND 3.3UH 3.9A 61 MOHM SMD

SPM5020T-3R3M-CA02 Datasheet
  • 1: $1.03920
  • 500: $1.03920

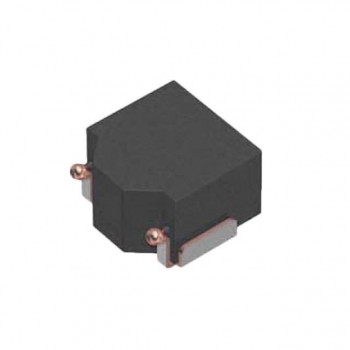

SPM5020T-4R7M-CA02
