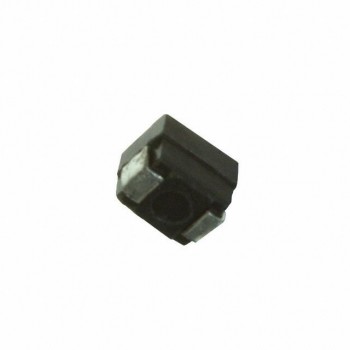

1210R-270K

Technical Details

• Series:1210R
• Package:Tape & Reel (TR)
• Part Status:Active
• Type:-
• Material - Core:Phenolic
• Inductance:27 nH
• Tolerance:±10%
• Current Rating (Amps):743 mA
• Current - Saturation (Isat):-
• Shielding:Unshielded
• DC Resistance (DCR):220mOhm Max

• Q @ Freq:30 @ 50MHz
• Frequency - Self Resonant:1.15GHz
• Ratings:-
• Operating Temperature:-55°C ~ 125°C
• Inductance Frequency - Test:50 MHz
• Features:-
• Mounting Type:Surface Mount
• Package / Case:1210 (3225 Metric)
• Supplier Device Package:1210
• Size / Dimension:0.128" L x 0.095" W (3.25mm x 2.42mm)
• Height - Seated (Max):0.101" (2.57mm)
