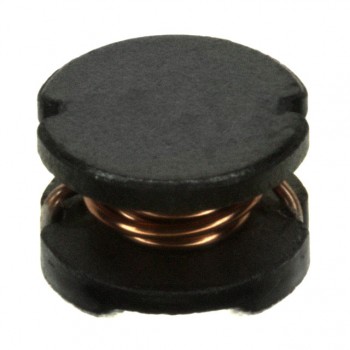

784774027
Würth Elektronik Midcom
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionFIXED IND 2.7UH 4A 45 MOHM SMD
- CategoryFixed Inductors
-
ECAD Model
- Share
In Stock: 159
Can ship immediately
Pricing:
- 1$1.12
- 1,500$1.12
Quote It
Technical Details
- Series:WE-PD2A
- Package:Tape & Reel (TR)Cut Tape (CT)
- Part Status:Active
- Type:Wirewound
- Material - Core:Ferrite
- Inductance:2.7 µH
- Tolerance:±20%
- Current Rating (Amps):4 A
- Current - Saturation (Isat):8A
- Shielding:Unshielded
- DC Resistance (DCR):45mOhm Max
- Q @ Freq:-
- Frequency - Self Resonant:50MHz
- Ratings:AEC-Q200
- Operating Temperature:-40°C ~ 125°C
- Inductance Frequency - Test:10 kHz
- Features:-
- Mounting Type:Surface Mount
- Package / Case:Nonstandard
- Supplier Device Package:5848
- Size / Dimension:0.228" L x 0.205" W (5.80mm x 5.20mm)
- Height - Seated (Max):0.191" (4.85mm)
