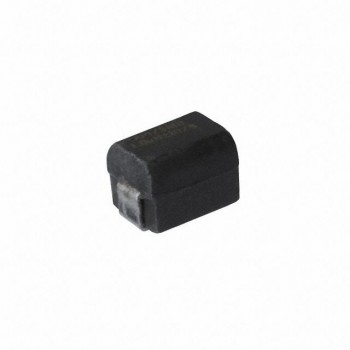

IMC1812BN471J
Vishay / Dale
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionFIXED IND 470UH 62MA 26 OHM SMD
- CategoryFixed Inductors
- Datasheet IMC1812BN471J Datasheet
-
ECAD Model
- Share
In Stock: 114
Can ship immediately
Pricing:
- 1$1.1492
- 500$1.1492
- 1,000$1.0478
- 2,500$1.014
Quote It
Technical Details
- Series:IMC-1812
- Package:Bulk
- Part Status:Active
- Type:Wirewound
- Material - Core:Ferrite
- Inductance:470 µH
- Tolerance:±5%
- Current Rating (Amps):62 mA
- Current - Saturation (Isat):-
- Shielding:Unshielded
- DC Resistance (DCR):26Ohm Max
- Q @ Freq:40 @ 790kHz
- Frequency - Self Resonant:3MHz
- Ratings:-
- Operating Temperature:-55°C ~ 125°C
- Inductance Frequency - Test:790 kHz
- Features:-
- Mounting Type:Surface Mount
- Package / Case:1812 (4532 Metric)
- Supplier Device Package:1812
- Size / Dimension:0.177" L x 0.126" W (4.50mm x 3.20mm)
- Height - Seated (Max):0.134" (3.40mm)
