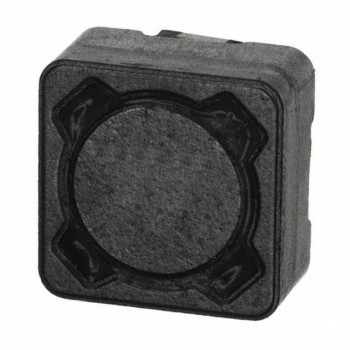

PF0560.382NL
PulseLarsen Antenna
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionFIXED IND 3.8UH 5.5A 13 MOHM SMD
- CategoryFixed Inductors
- Datasheet PF0560.382NL Datasheet
-
ECAD Model
- Share
In Stock: 174
Can ship immediately
Pricing:
- 1$1.54
- 90$1.10917
- 180$1.04443
- 540$0.80708
- 1,080$0.72076
- 2,520$0.69918
Quote It
Technical Details
- Series:PF0560NL
- Package:Tray
- Part Status:Active
- Type:Wirewound
- Material - Core:-
- Inductance:3.8 µH
- Tolerance:±30%
- Current Rating (Amps):5.5 A
- Current - Saturation (Isat):6A
- Shielding:Shielded
- DC Resistance (DCR):13mOhm Max
- Q @ Freq:-
- Frequency - Self Resonant:39MHz
- Ratings:-
- Operating Temperature:-40°C ~ 125°C
- Inductance Frequency - Test:100 kHz
- Features:-
- Mounting Type:Surface Mount
- Package / Case:Nonstandard
- Supplier Device Package:-
- Size / Dimension:0.409" L x 0.406" W (10.40mm x 10.30mm)
- Height - Seated (Max):0.157" (4.00mm)
