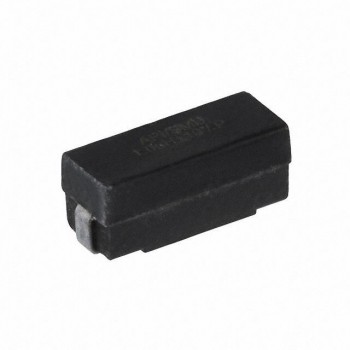

P1330R-273J

Technical Details

• Series:P1330R
• Package:Tape & Reel (TR)
• Part Status:Active
• Type:-
• Material - Core:Ferrite
• Inductance:27 µH
• Tolerance:±5%
• Current Rating (Amps):657 mA
• Current - Saturation (Isat):324mA
• Shielding:Unshielded
• DC Resistance (DCR):425mOhm Max

• Q @ Freq:-
• Frequency - Self Resonant:-
• Ratings:-
• Operating Temperature:-55°C ~ 125°C
• Inductance Frequency - Test:1 kHz
• Features:-
• Mounting Type:Surface Mount
• Package / Case:Nonstandard
• Supplier Device Package:-
• Size / Dimension:0.325" L x 0.125" W (8.26mm x 3.18mm)
• Height - Seated (Max):0.145" (3.68mm)
