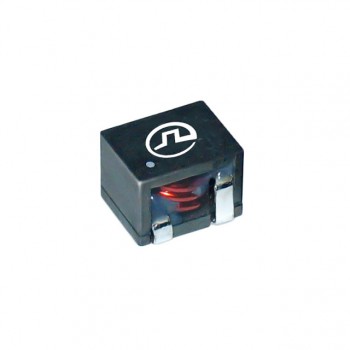

PG0084.651NLT
PulseLarsen Antenna
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionFIXED IND 650NH 32A 2.8 MOHM SMD
- CategoryFixed Inductors
- Datasheet PG0084.651NLT Datasheet
-
ECAD Model
- Share
In Stock: 177
Can ship immediately
Pricing:
- 1$1.71
- 1,080$1.71
Quote It
Technical Details
- Series:PG0084NL
- Package:Tape & Reel (TR)
- Part Status:Active
- Type:-
- Material - Core:-
- Inductance:650 nH
- Tolerance:±20%
- Current Rating (Amps):32 A
- Current - Saturation (Isat):32A
- Shielding:Unshielded
- DC Resistance (DCR):2.8mOhm Max
- Q @ Freq:-
- Frequency - Self Resonant:-
- Ratings:-
- Operating Temperature:-40°C ~ 95°C
- Inductance Frequency - Test:100 kHz
- Features:-
- Mounting Type:Surface Mount
- Package / Case:Nonstandard
- Supplier Device Package:-
- Size / Dimension:0.551" L x 0.512" W (14.00mm x 13.00mm)
- Height - Seated (Max):0.173" (4.40mm)
