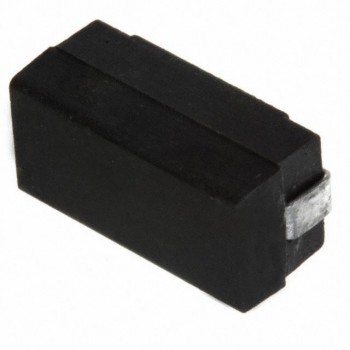

5022R-133J
API Delevan
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionFIXED IND 13UH 520MA 1.2 OHM SMD
- CategoryFixed Inductors
- Datasheet 5022R-133J Datasheet
-
ECAD Model
- Share
In Stock: 113
Can ship immediately
Pricing:
- 1$1.9623
- 800$1.62285
Quote It
Technical Details
- Series:5022R
- Package:Tape & Reel (TR)
- Part Status:Active
- Type:-
- Material - Core:Iron
- Inductance:13 µH
- Tolerance:±5%
- Current Rating (Amps):520 mA
- Current - Saturation (Isat):-
- Shielding:Unshielded
- DC Resistance (DCR):1.2Ohm Max
- Q @ Freq:65 @ 2.5MHz
- Frequency - Self Resonant:40MHz
- Ratings:-
- Operating Temperature:-55°C ~ 125°C
- Inductance Frequency - Test:2.5 MHz
- Features:-
- Mounting Type:Surface Mount
- Package / Case:Nonstandard
- Supplier Device Package:-
- Size / Dimension:0.520" L x 0.250" W (13.21mm x 6.35mm)
- Height - Seated (Max):0.230" (5.84mm)
