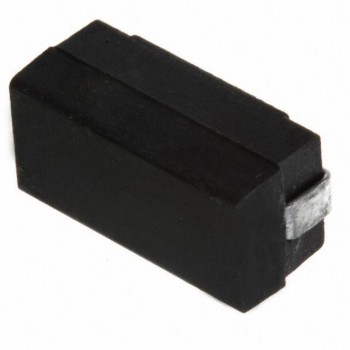

5022R-224J
API Delevan
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionFIXED IND 220UH 213MA 7.45 OHM
- CategoryFixed Inductors
- Datasheet 5022R-224J Datasheet
-
ECAD Model
- Share
In Stock: 149
Can ship immediately
Pricing:
- 1$2.06041
- 800$1.70399
Quote It
Technical Details
- Series:5022R
- Package:Tape & Reel (TR)
- Part Status:Active
- Type:-
- Material - Core:Iron
- Inductance:220 µH
- Tolerance:±5%
- Current Rating (Amps):213 mA
- Current - Saturation (Isat):-
- Shielding:Unshielded
- DC Resistance (DCR):7.45Ohm Max
- Q @ Freq:65 @ 790kHz
- Frequency - Self Resonant:6.2MHz
- Ratings:-
- Operating Temperature:-55°C ~ 125°C
- Inductance Frequency - Test:790 kHz
- Features:-
- Mounting Type:Surface Mount
- Package / Case:Nonstandard
- Supplier Device Package:-
- Size / Dimension:0.520" L x 0.250" W (13.21mm x 6.35mm)
- Height - Seated (Max):0.230" (5.84mm)
