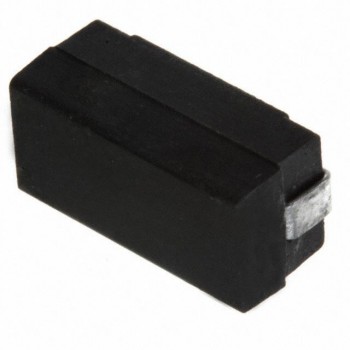

5022R-392J
API Delevan
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionFIXED IND 3.9UH 395MA 2.3 OHM
- CategoryFixed Inductors
- Datasheet 5022R-392J Datasheet
-
ECAD Model
- Share
In Stock: 109
Can ship immediately
Pricing:
- 1$2.06041
- 800$1.70399
Quote It
Technical Details
- Series:5022R
- Package:Tape & Reel (TR)
- Part Status:Active
- Type:-
- Material - Core:Phenolic
- Inductance:3.9 µH
- Tolerance:±5%
- Current Rating (Amps):395 mA
- Current - Saturation (Isat):-
- Shielding:Unshielded
- DC Resistance (DCR):2.3Ohm Max
- Q @ Freq:33 @ 7.9MHz
- Frequency - Self Resonant:100MHz
- Ratings:-
- Operating Temperature:-55°C ~ 125°C
- Inductance Frequency - Test:7.9 MHz
- Features:-
- Mounting Type:Surface Mount
- Package / Case:Nonstandard
- Supplier Device Package:-
- Size / Dimension:0.520" L x 0.250" W (13.21mm x 6.35mm)
- Height - Seated (Max):0.230" (5.84mm)
