5022R-513J

API Delevan
In Stock: 177

Can ship immediately

Pricing:
  • 1$2.06041
  • 800$1.70399

Quote It

Technical Details

  • Series:5022R
  • Package:Tape & Reel (TR)
  • Part Status:Active
  • Type:-
  • Material - Core:Iron
  • Inductance:51 µH
  • Tolerance:±5%
  • Current Rating (Amps):344 mA
  • Current - Saturation (Isat):-
  • Shielding:Unshielded
  • DC Resistance (DCR):2.85Ohm Max



  • Q @ Freq:55 @ 2.5MHz
  • Frequency - Self Resonant:12.7MHz
  • Ratings:-
  • Operating Temperature:-55°C ~ 125°C
  • Inductance Frequency - Test:2.5 MHz
  • Features:-
  • Mounting Type:Surface Mount
  • Package / Case:Nonstandard
  • Supplier Device Package:-
  • Size / Dimension:0.520" L x 0.250" W (13.21mm x 6.35mm)
  • Height - Seated (Max):0.230" (5.84mm)

Related Products


5022R-514J

FIXED IND 510UH 139MA 18.8 OHM

5022R-514J Datasheet
  • 1: $2.06041
  • 800: $1.70399

5022R-561J

FIXED IND 560NH 1.645A 135 MOHM

5022R-561J Datasheet
  • 1: $2.06041
  • 800: $1.70399

5022R-562J

FIXED IND 5.6UH 1.03A 320 MOHM

5022R-562J Datasheet
  • 1: $2.06041
  • 800: $1.70399

5022R-563J

FIXED IND 56UH 335MA 3 OHM SMD

5022R-563J Datasheet
  • 1: $2.06041
  • 800: $1.70399

5022R-564J

FIXED IND 560UH 136MA 19.5 OHM

5022R-564J Datasheet
  • 1: $2.06041
  • 800: $1.70399

5022R-621J

FIXED IND 620NH 1.615A 140 MOHM

5022R-621J Datasheet
  • 1: $2.06041
  • 800: $1.70399

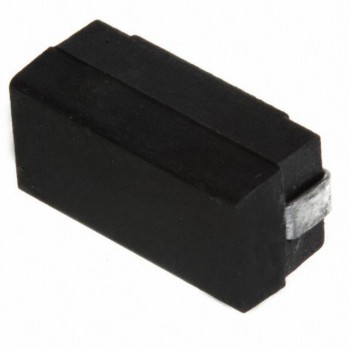

5022R-622J
