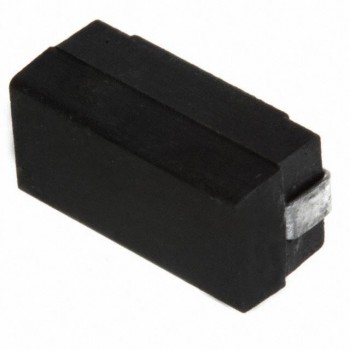

5022R-821J

Technical Details

• Series:5022R
• Package:Tape & Reel (TR)
• Part Status:Active
• Type:-
• Material - Core:Phenolic
• Inductance:820 nH
• Tolerance:±5%
• Current Rating (Amps):1.3 A
• Current - Saturation (Isat):-
• Shielding:Unshielded
• DC Resistance (DCR):220mOhm Max

• Q @ Freq:50 @ 25MHz
• Frequency - Self Resonant:220MHz
• Ratings:-
• Operating Temperature:-55°C ~ 125°C
• Inductance Frequency - Test:25 MHz
• Features:-
• Mounting Type:Surface Mount
• Package / Case:Nonstandard
• Supplier Device Package:-
• Size / Dimension:0.520" L x 0.250" W (13.21mm x 6.35mm)
• Height - Seated (Max):0.230" (5.84mm)
