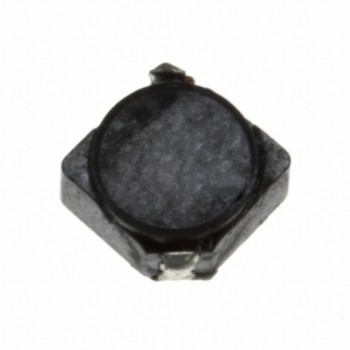

SPD42R-153M
API Delevan
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionFIXED IND 15UH 460MA 115 MOHM
- CategoryFixed Inductors
- Datasheet SPD42R-153M Datasheet
-
ECAD Model
- Share
In Stock: 137
Can ship immediately
Pricing:
- 1$1.9904
- 500$1.7728
Quote It
Technical Details
- Series:SPD42R
- Package:Tape & Reel (TR)
- Part Status:Active
- Type:Wirewound
- Material - Core:Ferrite
- Inductance:15 µH
- Tolerance:±20%
- Current Rating (Amps):460 mA
- Current - Saturation (Isat):460mA
- Shielding:Shielded
- DC Resistance (DCR):115mOhm Max
- Q @ Freq:-
- Frequency - Self Resonant:30MHz
- Ratings:-
- Operating Temperature:-55°C ~ 125°C
- Inductance Frequency - Test:1 kHz
- Features:-
- Mounting Type:Surface Mount
- Package / Case:Nonstandard
- Supplier Device Package:-
- Size / Dimension:0.185" L x 0.185" W (4.70mm x 4.70mm)
- Height - Seated (Max):0.115" (2.92mm)
