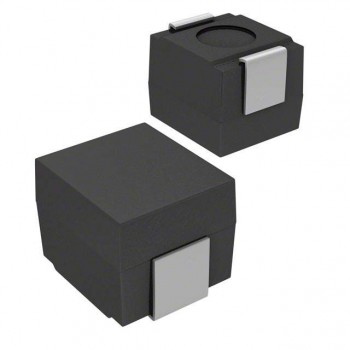

HF1008R-102J

Technical Details

• Series:HF1008R
• Package:Tape & Reel (TR)
• Part Status:Active
• Type:-
• Material - Core:Ferrite
• Inductance:1 µH
• Tolerance:±5%
• Current Rating (Amps):325 mA
• Current - Saturation (Isat):-
• Shielding:Unshielded
• DC Resistance (DCR):1.4Ohm Max

• Q @ Freq:30 @ 25MHz
• Frequency - Self Resonant:290MHz
• Ratings:-
• Operating Temperature:-55°C ~ 125°C
• Inductance Frequency - Test:25 MHz
• Features:-
• Mounting Type:Surface Mount
• Package / Case:Nonstandard
• Supplier Device Package:-
• Size / Dimension:0.115" L x 0.105" W (2.92mm x 2.66mm)
• Height - Seated (Max):0.095" (2.41mm)
