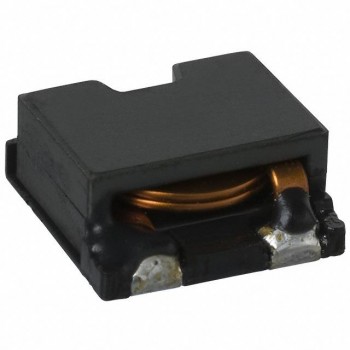

CEP125NP-0R3NC-UD
Sumida Corporation
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionFIXED IND 350NH 18.5A 1.8 MOHM
- CategoryFixed Inductors
- Datasheet CEP125NP-0R3NC-UD Datasheet
-
ECAD Model
- Share
In Stock: 117
Can ship immediately
Pricing:
- 1$2.336
- 500$2.336
Quote It
Technical Details
- Series:CEP125
- Package:Tape & Reel (TR)
- Part Status:Active
- Type:Wirewound
- Material - Core:Ferrite
- Inductance:350 nH
- Tolerance:±30%
- Current Rating (Amps):18.5 A
- Current - Saturation (Isat):35A
- Shielding:Shielded
- DC Resistance (DCR):1.8mOhm Max
- Q @ Freq:-
- Frequency - Self Resonant:-
- Ratings:-
- Operating Temperature:-40°C ~ 125°C
- Inductance Frequency - Test:100 kHz
- Features:-
- Mounting Type:Surface Mount
- Package / Case:Nonstandard
- Supplier Device Package:-
- Size / Dimension:0.492" L x 0.492" W (12.50mm x 12.50mm)
- Height - Seated (Max):0.220" (5.60mm)
