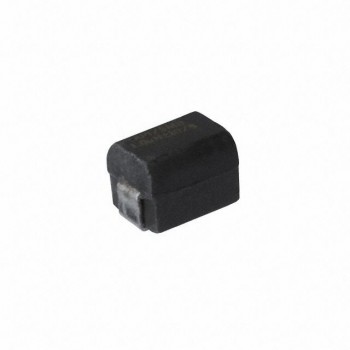

1812R-334G
API Delevan
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionFIXED IND 330UH 120MA 14 OHM SMD
- CategoryFixed Inductors
- Datasheet 1812R-334G Datasheet
-
ECAD Model
- Share
In Stock: 108
Can ship immediately
Pricing:
- 1$2.4096
- 650$2.4096
Quote It
Technical Details
- Series:1812R
- Package:Tape & Reel (TR)
- Part Status:Active
- Type:-
- Material - Core:Ferrite
- Inductance:330 µH
- Tolerance:±2%
- Current Rating (Amps):120 mA
- Current - Saturation (Isat):-
- Shielding:Unshielded
- DC Resistance (DCR):14Ohm Max
- Q @ Freq:40 @ 790kHz
- Frequency - Self Resonant:3.5MHz
- Ratings:-
- Operating Temperature:-55°C ~ 125°C
- Inductance Frequency - Test:790 kHz
- Features:-
- Mounting Type:Surface Mount
- Package / Case:2-SMD
- Supplier Device Package:-
- Size / Dimension:0.126" L x 0.126" W (3.20mm x 3.20mm)
- Height - Seated (Max):0.190" (4.83mm)
