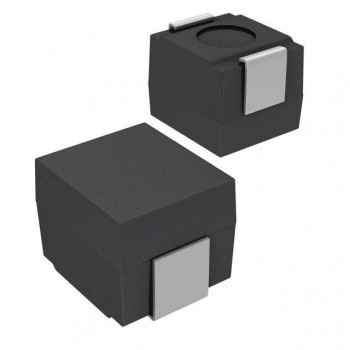

S1008-681J
API Delevan
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionFIXED IND 680NH 750MA 200 MOHM
- CategoryFixed Inductors
- Datasheet S1008-681J Datasheet
-
ECAD Model
- Share
In Stock: 108
Can ship immediately
Pricing:
- 1$2.4675
- 2,000$2.094
Quote It
Technical Details
- Series:S1008
- Package:Tape & Reel (TR)
- Part Status:Active
- Type:-
- Material - Core:Ferrite
- Inductance:680 nH
- Tolerance:±5%
- Current Rating (Amps):750 mA
- Current - Saturation (Isat):-
- Shielding:Shielded
- DC Resistance (DCR):200mOhm Max
- Q @ Freq:40 @ 25MHz
- Frequency - Self Resonant:186MHz
- Ratings:-
- Operating Temperature:-55°C ~ 125°C
- Inductance Frequency - Test:25 MHz
- Features:-
- Mounting Type:Surface Mount
- Package / Case:1008 (2520 Metric)
- Supplier Device Package:1008 (2520 Metric)
- Size / Dimension:0.115" L x 0.105" W (2.92mm x 2.66mm)
- Height - Seated (Max):0.095" (2.41mm)
