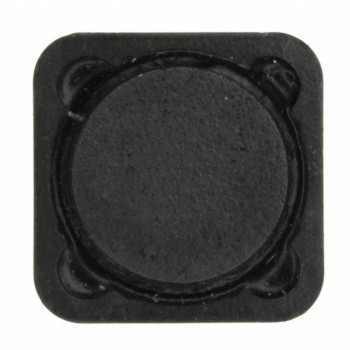

SPD125R-824M
API Delevan
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionFIXED IND 820UH 450MA 1.65 OHM
- CategoryFixed Inductors
- Datasheet SPD125R-824M Datasheet
-
ECAD Model
- Share
In Stock: 147
Can ship immediately
Pricing:
- 1$2.5056
- 500$2.5056
Quote It
Technical Details
- Series:SPD125R
- Package:Tape & Reel (TR)
- Part Status:Active
- Type:Wirewound
- Material - Core:Ferrite
- Inductance:820 µH
- Tolerance:±20%
- Current Rating (Amps):450 mA
- Current - Saturation (Isat):450mA
- Shielding:Shielded
- DC Resistance (DCR):1.65Ohm Max
- Q @ Freq:-
- Frequency - Self Resonant:-
- Ratings:-
- Operating Temperature:-55°C ~ 125°C
- Inductance Frequency - Test:1 kHz
- Features:-
- Mounting Type:Surface Mount
- Package / Case:Nonstandard
- Supplier Device Package:-
- Size / Dimension:0.472" L x 0.472" W (12.00mm x 12.00mm)
- Height - Seated (Max):0.236" (6.00mm)
