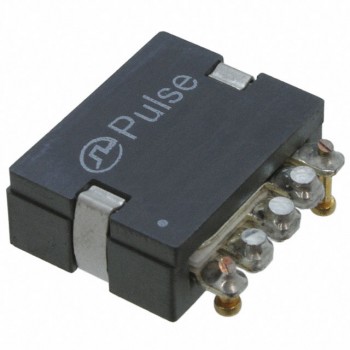

PA1494.162NLT
PulseLarsen Antenna
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionFIXED IND 1.6UH 37A 1.8 MOHM SMD
- CategoryFixed Inductors
- Datasheet PA1494.162NLT Datasheet
-
ECAD Model
- Share
In Stock: 103
Can ship immediately
Pricing:
- 1$3.14184
- 750$3.14184
Quote It
Technical Details
- Series:PA1494NL
- Package:Tape & Reel (TR)
- Part Status:Active
- Type:Planar
- Material - Core:-
- Inductance:1.6 µH
- Tolerance:±15%
- Current Rating (Amps):37 A
- Current - Saturation (Isat):55A
- Shielding:Shielded
- DC Resistance (DCR):1.8mOhm Max
- Q @ Freq:-
- Frequency - Self Resonant:-
- Ratings:-
- Operating Temperature:-40°C ~ 130°C
- Inductance Frequency - Test:-
- Features:-
- Mounting Type:Surface Mount
- Package / Case:Nonstandard
- Supplier Device Package:-
- Size / Dimension:0.780" L x 0.770" W (19.81mm x 19.56mm)
- Height - Seated (Max):0.290" (7.37mm)
