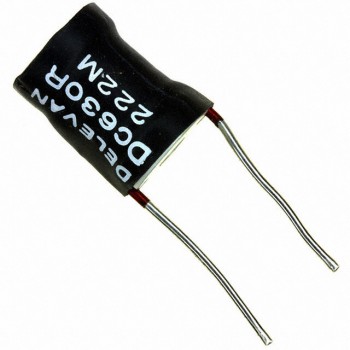

DC630R-222M
API Delevan
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionFIXED IND 2.2UH 12.8A 5 MOHM TH
- CategoryFixed Inductors
- Datasheet DC630R-222M Datasheet
-
ECAD Model
- Share
In Stock: 129
Can ship immediately
Pricing:
- 1$4.626
- 500$4.25786
Quote It
Technical Details
- Series:DC630R
- Package:Bulk
- Part Status:Active
- Type:Wirewound
- Material - Core:Ferrite
- Inductance:2.2 µH
- Tolerance:±20%
- Current Rating (Amps):12.8 A
- Current - Saturation (Isat):46A
- Shielding:Unshielded
- DC Resistance (DCR):5mOhm Max
- Q @ Freq:-
- Frequency - Self Resonant:-
- Ratings:-
- Operating Temperature:-55°C ~ 125°C
- Inductance Frequency - Test:10 kHz
- Features:-
- Mounting Type:Through Hole
- Package / Case:Radial, Vertical Cylinder
- Supplier Device Package:-
- Size / Dimension:0.630" Dia (16.00mm)
- Height - Seated (Max):0.830" (21.08mm)
