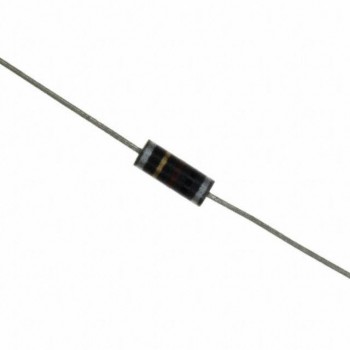

9250-685
J.W. Miller / Bourns
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionFIXED IND 6.8MH 27MA 111 OHM TH
- CategoryFixed Inductors
- Datasheet 9250-685 Datasheet
-
ECAD Model
- Share
In Stock: 107
Can ship immediately
Pricing:
Call for price or sumbit a RFQ
Quote It
Technical Details
- Series:9250
- Package:Bulk
- Part Status:Obsolete
- Type:Wirewound
- Material - Core:Ferrite
- Inductance:6.8 mH
- Tolerance:±10%
- Current Rating (Amps):27 mA
- Current - Saturation (Isat):16mA
- Shielding:Shielded
- DC Resistance (DCR):111Ohm Max
- Q @ Freq:40 @ 250kHz
- Frequency - Self Resonant:660kHz
- Ratings:-
- Operating Temperature:-55°C ~ 105°C
- Inductance Frequency - Test:250 kHz
- Features:-
- Mounting Type:Through Hole
- Package / Case:Axial
- Supplier Device Package:-
- Size / Dimension:0.162" Dia x 0.410" L (4.11mm x 10.41mm)
- Height - Seated (Max):-
