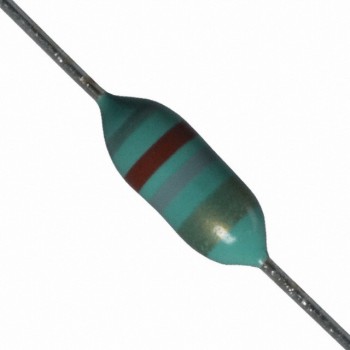

8230-96
J.W. Miller / Bourns
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionFIXED IND 120NH 1.1A 80 MOHM TH
- CategoryFixed Inductors
- Datasheet 8230-96 Datasheet
-
ECAD Model
- Share
In Stock: 118
Can ship immediately
Pricing:
Call for price or sumbit a RFQ
Quote It
Technical Details
- Series:8230
- Package:Bulk
- Part Status:Obsolete
- Type:Wirewound
- Material - Core:Phenolic
- Inductance:120 nH
- Tolerance:±10%
- Current Rating (Amps):1.1 A
- Current - Saturation (Isat):-
- Shielding:Unshielded
- DC Resistance (DCR):80mOhm Max
- Q @ Freq:40 @ 25MHz
- Frequency - Self Resonant:650MHz
- Ratings:-
- Operating Temperature:-55°C ~ 105°C
- Inductance Frequency - Test:25 MHz
- Features:-
- Mounting Type:Through Hole
- Package / Case:Axial
- Supplier Device Package:-
- Size / Dimension:0.120" Dia x 0.300" L (3.05mm x 7.62mm)
- Height - Seated (Max):-
