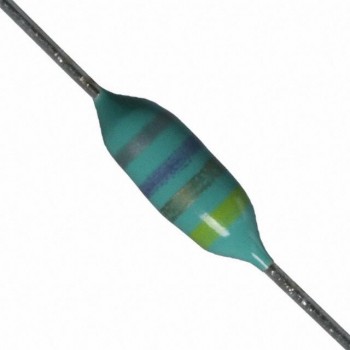

8230-22
J.W. Miller / Bourns
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionFIXED IND 1.2UH 825MA 180MOHM TH
- CategoryFixed Inductors
- Datasheet 8230-22 Datasheet
-
ECAD Model
- Share
In Stock: 172
Can ship immediately
Pricing:
Call for price or sumbit a RFQ
Quote It
Technical Details
- Series:8230
- Package:Bulk
- Part Status:Obsolete
- Type:Wirewound
- Material - Core:Ferrite
- Inductance:1.2 µH
- Tolerance:±10%
- Current Rating (Amps):825 mA
- Current - Saturation (Isat):-
- Shielding:Unshielded
- DC Resistance (DCR):180mOhm Max
- Q @ Freq:25 @ 7.9MHz
- Frequency - Self Resonant:150MHz
- Ratings:-
- Operating Temperature:-55°C ~ 105°C
- Inductance Frequency - Test:7.9 MHz
- Features:-
- Mounting Type:Through Hole
- Package / Case:Axial
- Supplier Device Package:-
- Size / Dimension:0.120" Dia x 0.300" L (3.05mm x 7.62mm)
- Height - Seated (Max):-
