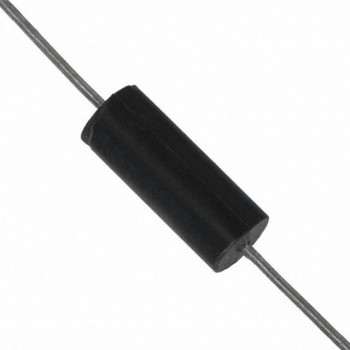

9250-561
J.W. Miller / Bourns
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionFIXED IND 560NH 490MA 330MOHM TH
- CategoryFixed Inductors
- Datasheet 9250-561 Datasheet
-
ECAD Model
- Share
In Stock: 122
Can ship immediately
Pricing:
Call for price or sumbit a RFQ
Quote It
Technical Details
- Series:9250
- Package:Bulk
- Part Status:Obsolete
- Type:Wirewound
- Material - Core:Ferrite
- Inductance:560 nH
- Tolerance:±10%
- Current Rating (Amps):490 mA
- Current - Saturation (Isat):490mA
- Shielding:Shielded
- DC Resistance (DCR):330mOhm Max
- Q @ Freq:43 @ 25MHz
- Frequency - Self Resonant:210MHz
- Ratings:-
- Operating Temperature:-55°C ~ 105°C
- Inductance Frequency - Test:25 MHz
- Features:-
- Mounting Type:Through Hole
- Package / Case:Axial
- Supplier Device Package:-
- Size / Dimension:0.162" Dia x 0.410" L (4.11mm x 10.41mm)
- Height - Seated (Max):-
