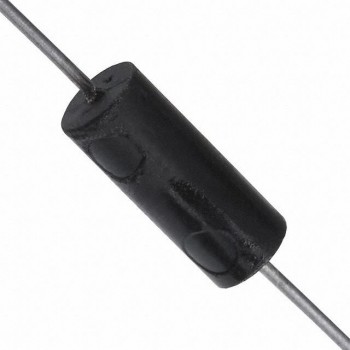

78F471J

Technical Details

• Series:78F
• Package:Bulk
• Part Status:Obsolete
• Type:Wirewound
• Material - Core:Ferrite
• Inductance:470 µH
• Tolerance:±5%
• Current Rating (Amps):53 mA
• Current - Saturation (Isat):-
• Shielding:Unshielded
• DC Resistance (DCR):11.6Ohm Max

• Q @ Freq:60 @ 790kHz
• Frequency - Self Resonant:2.5MHz
• Ratings:-
• Operating Temperature:-55°C ~ 105°C
• Inductance Frequency - Test:790 kHz
• Features:-
• Mounting Type:Through Hole
• Package / Case:Axial
• Supplier Device Package:-
• Size / Dimension:0.110" Dia x 0.280" L (2.79mm x 7.11mm)
• Height - Seated (Max):-
