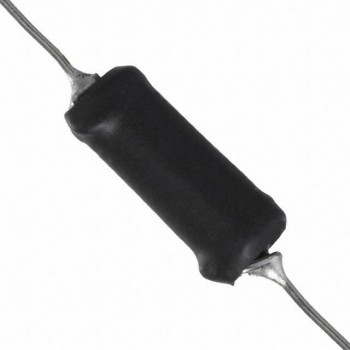

5800-220
J.W. Miller / Bourns
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionFIXED IND 22UH 1.7A 51 MOHM TH
- CategoryFixed Inductors
- Datasheet 5800-220 Datasheet
-
ECAD Model
- Share
In Stock: 118
Can ship immediately
Pricing:
Call for price or sumbit a RFQ
Quote It
Technical Details
- Series:5800
- Package:Bulk
- Part Status:Obsolete
- Type:Wirewound
- Material - Core:Ferrite
- Inductance:22 µH
- Tolerance:±10%
- Current Rating (Amps):1.7 A
- Current - Saturation (Isat):2.4A
- Shielding:Unshielded
- DC Resistance (DCR):51mOhm Max
- Q @ Freq:-
- Frequency - Self Resonant:-
- Ratings:-
- Operating Temperature:-55°C ~ 105°C
- Inductance Frequency - Test:1 kHz
- Features:-
- Mounting Type:Through Hole
- Package / Case:Axial
- Supplier Device Package:-
- Size / Dimension:0.275" Dia x 0.700" L (6.99mm x 17.78mm)
- Height - Seated (Max):-
