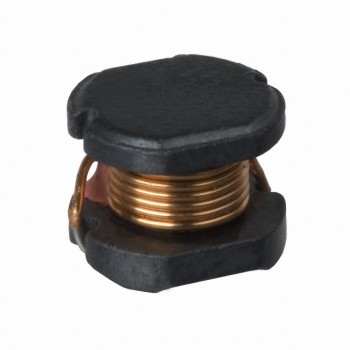

PM54-390L

Technical Details

• Series:PM54
• Package:Tape & Reel (TR)Cut Tape (CT)
• Part Status:Obsolete
• Type:Wirewound
• Material - Core:Ferrite
• Inductance:39 µH
• Tolerance:±15%
• Current Rating (Amps):800 mA
• Current - Saturation (Isat):-
• Shielding:Unshielded
• DC Resistance (DCR):320mOhm

• Q @ Freq:-
• Frequency - Self Resonant:15MHz
• Ratings:-
• Operating Temperature:-30°C ~ 100°C
• Inductance Frequency - Test:2.52 MHz
• Features:-
• Mounting Type:Surface Mount
• Package / Case:Nonstandard
• Supplier Device Package:-
• Size / Dimension:0.228" L x 0.228" W (5.80mm x 5.80mm)
• Height - Seated (Max):0.189" (4.80mm)
