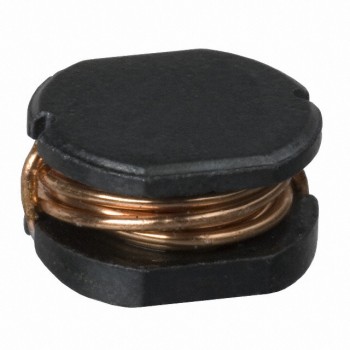

PM105-150M
J.W. Miller / Bourns
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionFIXED IND 15UH 2.27A 80 MOHM SMD
- CategoryFixed Inductors
- Datasheet PM105-150M Datasheet
-
ECAD Model
- Share
In Stock: 175
Can ship immediately
Pricing:
Call for price or sumbit a RFQ
Quote It
Technical Details
- Series:PM105
- Package:Tape & Reel (TR)Cut Tape (CT)
- Part Status:Obsolete
- Type:Wirewound
- Material - Core:Ferrite
- Inductance:15 µH
- Tolerance:±20%
- Current Rating (Amps):2.27 A
- Current - Saturation (Isat):-
- Shielding:Unshielded
- DC Resistance (DCR):80mOhm
- Q @ Freq:-
- Frequency - Self Resonant:19MHz
- Ratings:-
- Operating Temperature:-30°C ~ 100°C
- Inductance Frequency - Test:2.52 MHz
- Features:-
- Mounting Type:Surface Mount
- Package / Case:Nonstandard
- Supplier Device Package:-
- Size / Dimension:0.386" L x 0.386" W (9.80mm x 9.80mm)
- Height - Seated (Max):0.228" (5.80mm)
