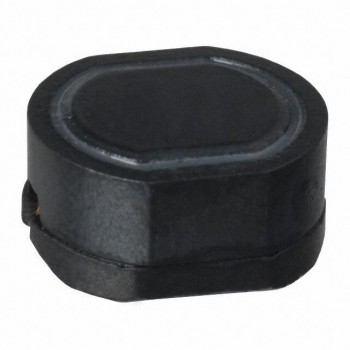

PM105S-220M
J.W. Miller / Bourns
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionFIXED IND 22UH 1.71A 90 MOHM SMD
- CategoryFixed Inductors
- Datasheet PM105S-220M Datasheet
-
ECAD Model
- Share
In Stock: 126
Can ship immediately
Pricing:
Call for price or sumbit a RFQ
Quote It
Technical Details
- Series:PM105S
- Package:Tape & Reel (TR)Cut Tape (CT)
- Part Status:Obsolete
- Type:Wirewound
- Material - Core:Ferrite
- Inductance:22 µH
- Tolerance:±20%
- Current Rating (Amps):1.71 A
- Current - Saturation (Isat):-
- Shielding:Shielded
- DC Resistance (DCR):90mOhm Max
- Q @ Freq:-
- Frequency - Self Resonant:21MHz
- Ratings:-
- Operating Temperature:-30°C ~ 100°C
- Inductance Frequency - Test:2.52 MHz
- Features:-
- Mounting Type:Surface Mount
- Package / Case:Nonstandard
- Supplier Device Package:-
- Size / Dimension:0.394" L x 0.362" W (10.00mm x 9.20mm)
- Height - Seated (Max):0.217" (5.50mm)
