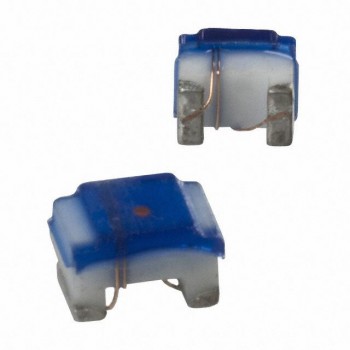

PM0805-8N2M
J.W. Miller / Bourns
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionFIXED IND 8.2NH 600MA 120MOHM SM
- CategoryFixed Inductors
- Datasheet PM0805-8N2M Datasheet
-
ECAD Model
- Share
In Stock: 127
Can ship immediately
Pricing:
Call for price or sumbit a RFQ
Quote It
Technical Details
- Series:PM0805
- Package:Tape & Reel (TR)Cut Tape (CT)
- Part Status:Obsolete
- Type:Wirewound
- Material - Core:Ceramic
- Inductance:8.2 nH
- Tolerance:±20%
- Current Rating (Amps):600 mA
- Current - Saturation (Isat):-
- Shielding:Unshielded
- DC Resistance (DCR):120mOhm Max
- Q @ Freq:50 @ 500MHz
- Frequency - Self Resonant:4.7GHz
- Ratings:-
- Operating Temperature:-55°C ~ 125°C
- Inductance Frequency - Test:250 MHz
- Features:-
- Mounting Type:Surface Mount
- Package / Case:0805 (2012 Metric)
- Supplier Device Package:0805 (2012 Metric)
- Size / Dimension:0.083" L x 0.059" W (2.10mm x 1.50mm)
- Height - Seated (Max):0.059" (1.50mm)
