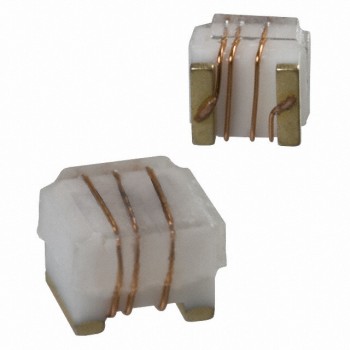

PM1008-R12K
J.W. Miller / Bourns
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionFIXED IND 120NH 650MA 680MOHM SM
- CategoryFixed Inductors
- Datasheet PM1008-R12K Datasheet
-
ECAD Model
- Share
In Stock: 183
Can ship immediately
Pricing:
Call for price or sumbit a RFQ
Quote It
Technical Details
- Series:PM1008
- Package:Tape & Reel (TR)Cut Tape (CT)
- Part Status:Obsolete
- Type:Wirewound
- Material - Core:Ceramic
- Inductance:120 nH
- Tolerance:±10%
- Current Rating (Amps):650 mA
- Current - Saturation (Isat):-
- Shielding:Unshielded
- DC Resistance (DCR):680mOhm
- Q @ Freq:60 @ 350MHz
- Frequency - Self Resonant:950MHz
- Ratings:-
- Operating Temperature:-55°C ~ 125°C
- Inductance Frequency - Test:25 MHz
- Features:-
- Mounting Type:Surface Mount
- Package / Case:1008 (2520 Metric)
- Supplier Device Package:1008 (2520 Metric)
- Size / Dimension:0.098" L x 0.079" W (2.50mm x 2.00mm)
- Height - Seated (Max):0.071" (1.80mm)
