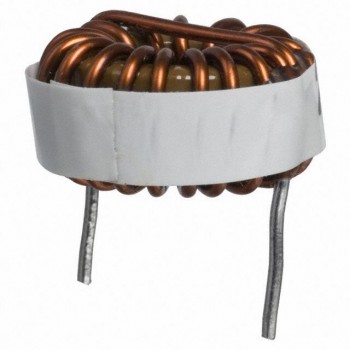

2209-H
J.W. Miller / Bourns
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionFIXED IND 47UH 6.7A 24 MOHM TH
- CategoryFixed Inductors
- Datasheet 2209-H Datasheet
-
ECAD Model
- Share
In Stock: 181
Can ship immediately
Pricing:
Call for price or sumbit a RFQ
Quote It
Technical Details
- Series:2200
- Package:Bulk
- Part Status:Obsolete
- Type:Toroidal
- Material - Core:Iron Powder
- Inductance:47 µH
- Tolerance:±15%
- Current Rating (Amps):6.7 A
- Current - Saturation (Isat):-
- Shielding:Shielded
- DC Resistance (DCR):24mOhm Max
- Q @ Freq:-
- Frequency - Self Resonant:-
- Ratings:-
- Operating Temperature:-55°C ~ 105°C
- Inductance Frequency - Test:1 kHz
- Features:-
- Mounting Type:Through Hole
- Package / Case:Radial, Horizontal (Open)
- Supplier Device Package:-
- Size / Dimension:0.950" Dia (24.13mm)
- Height - Seated (Max):0.550" (13.97mm)
