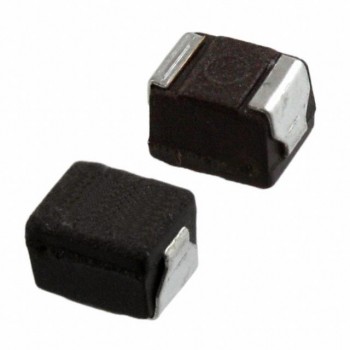

ELJ-PA100KF

Technical Details

• Series:PA
• Package:Tape & Reel (TR)Cut Tape (CT)
• Part Status:Obsolete
• Type:Wirewound
• Material - Core:Ferrite
• Inductance:10 µH
• Tolerance:±10%
• Current Rating (Amps):240 mA
• Current - Saturation (Isat):-
• Shielding:Unshielded
• DC Resistance (DCR):500mOhm Max

• Q @ Freq:15 @ 2.52MHz
• Frequency - Self Resonant:23MHz
• Ratings:-
• Operating Temperature:-20°C ~ 85°C
• Inductance Frequency - Test:2.52 MHz
• Features:-
• Mounting Type:Surface Mount
• Package / Case:1210 (3225 Metric)
• Supplier Device Package:-
• Size / Dimension:0.126" L x 0.098" W (3.20mm x 2.50mm)
• Height - Seated (Max):0.094" (2.40mm)
