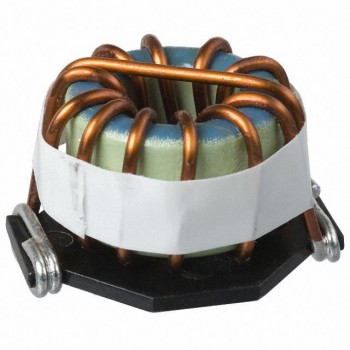

PM2120-330K
J.W. Miller / Bourns
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionFIXED IND 33UH 10.1A 13 MOHM SMD
- CategoryFixed Inductors
- Datasheet PM2120-330K Datasheet
-
ECAD Model
- Share
In Stock: 118
Can ship immediately
Pricing:
Call for price or sumbit a RFQ
Quote It
Technical Details
- Series:PM2120
- Package:Bulk
- Part Status:Obsolete
- Type:Toroidal
- Material - Core:Iron
- Inductance:33 µH
- Tolerance:±10%
- Current Rating (Amps):10.1 A
- Current - Saturation (Isat):-
- Shielding:Unshielded
- DC Resistance (DCR):13mOhm Max
- Q @ Freq:-
- Frequency - Self Resonant:-
- Ratings:-
- Operating Temperature:-55°C ~ 105°C
- Inductance Frequency - Test:1 kHz
- Features:-
- Mounting Type:Surface Mount
- Package / Case:Nonstandard
- Supplier Device Package:-
- Size / Dimension:1.201" L x 1.000" W (30.50mm x 25.40mm)
- Height - Seated (Max):0.820" (20.83mm)
