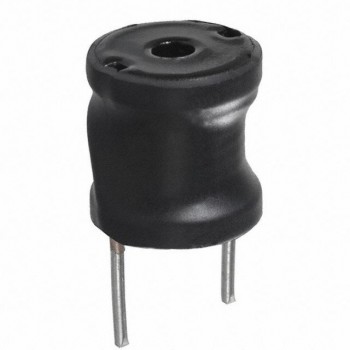

1120-4R7M
J.W. Miller / Bourns
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionFIXED IND 4.7UH 11.4A 5 MOHM TH
- CategoryFixed Inductors
- Datasheet 1120-4R7M Datasheet
-
ECAD Model
- Share
In Stock: 169
Can ship immediately
Pricing:
Call for price or sumbit a RFQ
Quote It
Technical Details
- Series:1120
- Package:Bulk
- Part Status:Obsolete
- Type:Wirewound
- Material - Core:Ferrite
- Inductance:4.7 µH
- Tolerance:±20%
- Current Rating (Amps):11.4 A
- Current - Saturation (Isat):-
- Shielding:Unshielded
- DC Resistance (DCR):5mOhm Max
- Q @ Freq:-
- Frequency - Self Resonant:-
- Ratings:-
- Operating Temperature:-55°C ~ 105°C
- Inductance Frequency - Test:1 kHz
- Features:-
- Mounting Type:Through Hole
- Package / Case:Radial, Vertical Cylinder
- Supplier Device Package:-
- Size / Dimension:0.810" Dia (20.57mm)
- Height - Seated (Max):0.840" (21.34mm)
