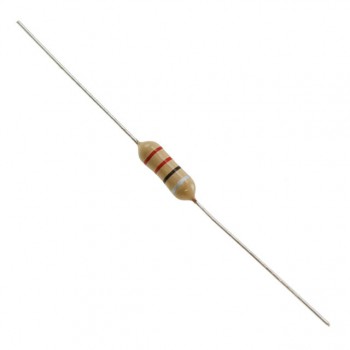

5300-10
J.W. Miller / Bourns
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionFIXED IND 5.6UH 1.6A 74 MOHM TH
- CategoryFixed Inductors
- Datasheet 5300-10 Datasheet
-
ECAD Model
- Share
In Stock: 177
Can ship immediately
Pricing:
Call for price or sumbit a RFQ
Quote It
Technical Details
- Series:5300
- Package:Bulk
- Part Status:Obsolete
- Type:Wirewound
- Material - Core:Ferrite
- Inductance:5.6 µH
- Tolerance:±10%
- Current Rating (Amps):1.6 A
- Current - Saturation (Isat):1.3A
- Shielding:Unshielded
- DC Resistance (DCR):74mOhm Max
- Q @ Freq:-
- Frequency - Self Resonant:64MHz
- Ratings:-
- Operating Temperature:-55°C ~ 105°C
- Inductance Frequency - Test:7.96 MHz
- Features:-
- Mounting Type:Through Hole
- Package / Case:Axial
- Supplier Device Package:-
- Size / Dimension:0.160" Dia x 0.500" L (4.06mm x 12.70mm)
- Height - Seated (Max):-
