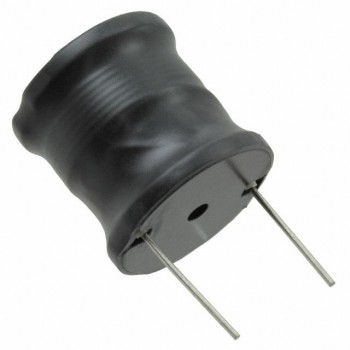

5614
J.W. Miller / Bourns
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionFIXED IND 100UH 7A 34 MOHM TH
- CategoryFixed Inductors
- Datasheet 5614 Datasheet
-
ECAD Model
- Share
In Stock: 109
Can ship immediately
Pricing:
Call for price or sumbit a RFQ
Quote It
Technical Details
- Series:5600
- Package:Bulk
- Part Status:Obsolete
- Type:Wirewound
- Material - Core:Ferrite
- Inductance:100 µH
- Tolerance:±10%
- Current Rating (Amps):7 A
- Current - Saturation (Isat):-
- Shielding:Unshielded
- DC Resistance (DCR):34mOhm Max
- Q @ Freq:-
- Frequency - Self Resonant:-
- Ratings:-
- Operating Temperature:-55°C ~ 105°C
- Inductance Frequency - Test:1 kHz
- Features:-
- Mounting Type:Through Hole
- Package / Case:Radial, Vertical Cylinder
- Supplier Device Package:-
- Size / Dimension:1.220" Dia (30.99mm)
- Height - Seated (Max):1.110" (28.19mm)
