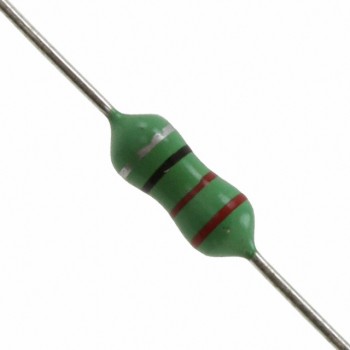

77F270K
J.W. Miller / Bourns
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionFIXED IND 27UH 390MA 940 MOHM TH
- CategoryFixed Inductors
- Datasheet 77F270K Datasheet
-
ECAD Model
- Share
In Stock: 141
Can ship immediately
Pricing:
Call for price or sumbit a RFQ
Quote It
Technical Details
- Series:77F
- Package:Bulk
- Part Status:Obsolete
- Type:Wirewound
- Material - Core:Ferrite
- Inductance:27 µH
- Tolerance:±10%
- Current Rating (Amps):390 mA
- Current - Saturation (Isat):-
- Shielding:Unshielded
- DC Resistance (DCR):940mOhm Max
- Q @ Freq:55 @ 2.52MHz
- Frequency - Self Resonant:7.6MHz
- Ratings:-
- Operating Temperature:-55°C ~ 105°C
- Inductance Frequency - Test:2.52 MHz
- Features:-
- Mounting Type:Through Hole
- Package / Case:Axial
- Supplier Device Package:-
- Size / Dimension:0.157" Dia x 0.410" L (3.99mm x 10.41mm)
- Height - Seated (Max):-
