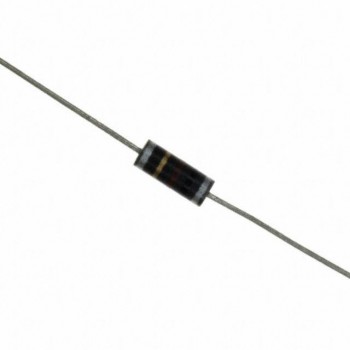

9230-14
J.W. Miller / Bourns
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionFIXED IND 560NH 495MA 500MOHM TH
- CategoryFixed Inductors
- Datasheet 9230-14 Datasheet
-
ECAD Model
- Share
In Stock: 101
Can ship immediately
Pricing:
Call for price or sumbit a RFQ
Quote It
Technical Details
- Series:9230
- Package:Bulk
- Part Status:Obsolete
- Type:Molded
- Material - Core:Phenolic
- Inductance:560 nH
- Tolerance:±10%
- Current Rating (Amps):495 mA
- Current - Saturation (Isat):-
- Shielding:Unshielded
- DC Resistance (DCR):500mOhm Max
- Q @ Freq:30 @ 25MHz
- Frequency - Self Resonant:300MHz
- Ratings:-
- Operating Temperature:-55°C ~ 105°C
- Inductance Frequency - Test:25 MHz
- Features:-
- Mounting Type:Through Hole
- Package / Case:Axial
- Supplier Device Package:-
- Size / Dimension:0.095" Dia x 0.250" L (2.41mm x 6.35mm)
- Height - Seated (Max):-
