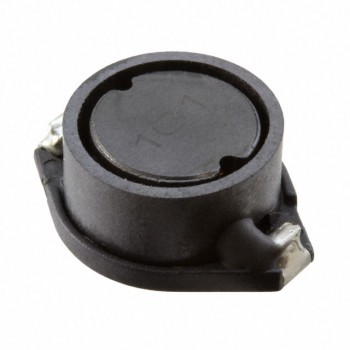

PM5022S-102M
J.W. Miller / Bourns
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionFIXED IND 1MH 530MA 2.01 OHM SMD
- CategoryFixed Inductors
- Datasheet PM5022S-102M Datasheet
-
ECAD Model
- Share
In Stock: 124
Can ship immediately
Pricing:
Call for price or sumbit a RFQ
Quote It
Technical Details
- Series:PM5022S
- Package:Tape & Reel (TR)
- Part Status:Obsolete
- Type:Wirewound
- Material - Core:Ferrite
- Inductance:1 mH
- Tolerance:±20%
- Current Rating (Amps):530 mA
- Current - Saturation (Isat):800mA
- Shielding:Shielded
- DC Resistance (DCR):2.01Ohm Max
- Q @ Freq:-
- Frequency - Self Resonant:-
- Ratings:-
- Operating Temperature:-40°C ~ 85°C
- Inductance Frequency - Test:100 kHz
- Features:-
- Mounting Type:Surface Mount
- Package / Case:Nonstandard
- Supplier Device Package:-
- Size / Dimension:0.732" L x 0.602" W (18.60mm x 15.30mm)
- Height - Seated (Max):0.299" (7.60mm)
