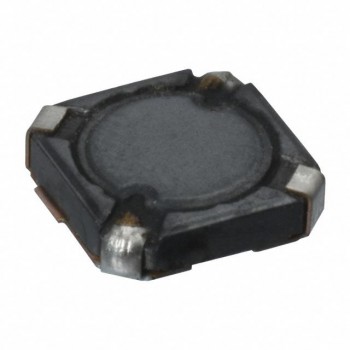

ELL-5GM330M
Panasonic
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionFIXED IND 33UH 400MA 490 MOHM
- CategoryFixed Inductors
- Datasheet ELL-5GM330M Datasheet
-
ECAD Model
- Share
In Stock: 105
Can ship immediately
Pricing:
Call for price or sumbit a RFQ
Quote It
Technical Details
- Series:M
- Package:Tape & Reel (TR)Cut Tape (CT)
- Part Status:Obsolete
- Type:Wirewound
- Material - Core:-
- Inductance:33 µH
- Tolerance:±20%
- Current Rating (Amps):400 mA
- Current - Saturation (Isat):-
- Shielding:Shielded
- DC Resistance (DCR):490mOhm
- Q @ Freq:-
- Frequency - Self Resonant:-
- Ratings:-
- Operating Temperature:-
- Inductance Frequency - Test:100 kHz
- Features:-
- Mounting Type:Surface Mount
- Package / Case:Nonstandard
- Supplier Device Package:-
- Size / Dimension:0.205" L x 0.205" W (5.20mm x 5.20mm)
- Height - Seated (Max):0.059" (1.50mm)
