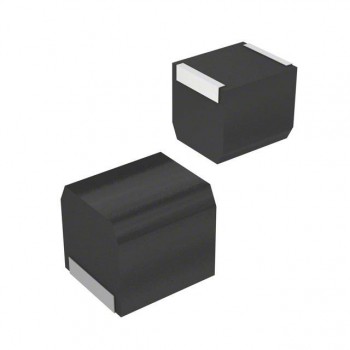

NLC565050T-3R9K-PF
TDK Corporation
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionFIXED IND 3.9UH 1.05A 90 MOHM
- CategoryFixed Inductors
- Datasheet NLC565050T-3R9K-PF Datasheet
-
ECAD Model
- Share
In Stock: 101
Can ship immediately
Pricing:
Call for price or sumbit a RFQ
Quote It
Technical Details
- Series:NLC
- Package:Tape & Reel (TR)Cut Tape (CT)
- Part Status:Obsolete
- Type:Wirewound
- Material - Core:-
- Inductance:3.9 µH
- Tolerance:±10%
- Current Rating (Amps):1.05 A
- Current - Saturation (Isat):-
- Shielding:Unshielded
- DC Resistance (DCR):90mOhm Max
- Q @ Freq:10 @ 7.96MHz
- Frequency - Self Resonant:32MHz
- Ratings:-
- Operating Temperature:-40°C ~ 105°C
- Inductance Frequency - Test:7.96 MHz
- Features:-
- Mounting Type:Surface Mount
- Package / Case:2220 (5650 Metric)
- Supplier Device Package:-
- Size / Dimension:0.220" L x 0.197" W (5.60mm x 5.00mm)
- Height - Seated (Max):0.209" (5.30mm)
