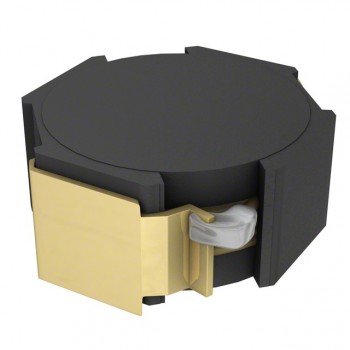

VLF10040T-1R0N9R7
TDK Corporation
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionFIXED IND 1UH 9.7A 5.2 MOHM SMD
- CategoryFixed Inductors
- Datasheet VLF10040T-1R0N9R7 Datasheet
-
ECAD Model
- Share
In Stock: 118
Can ship immediately
Pricing:
Call for price or sumbit a RFQ
Quote It
Technical Details
- Series:VLF
- Package:Tape & Reel (TR)Cut Tape (CT)
- Part Status:Obsolete
- Type:Wirewound
- Material - Core:Ferrite
- Inductance:1 µH
- Tolerance:±30%
- Current Rating (Amps):9.7 A
- Current - Saturation (Isat):11.9A
- Shielding:Shielded
- DC Resistance (DCR):5.2mOhm Max
- Q @ Freq:-
- Frequency - Self Resonant:-
- Ratings:-
- Operating Temperature:-40°C ~ 105°C
- Inductance Frequency - Test:100 kHz
- Features:-
- Mounting Type:Surface Mount
- Package / Case:Nonstandard
- Supplier Device Package:-
- Size / Dimension:0.394" L x 0.382" W (10.00mm x 9.70mm)
- Height - Seated (Max):0.157" (4.00mm)
