NL565050T-822J-PF
TDK Corporation
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionFIXED IND 8.2MH 28MA 125 OHM SMD
- CategoryFixed Inductors
- Datasheet NL565050T-822J-PF Datasheet
-
ECAD Model
- Share
In Stock: 110
Can ship immediately
Pricing:
Call for price or sumbit a RFQ
Quote It
Technical Details
- Series:NL
- Package:Tape & Reel (TR)Cut Tape (CT)
- Part Status:Obsolete
- Type:Wirewound
- Material - Core:-
- Inductance:8.2 mH
- Tolerance:±5%
- Current Rating (Amps):28 mA
- Current - Saturation (Isat):-
- Shielding:Unshielded
- DC Resistance (DCR):125Ohm Max
- Q @ Freq:30 @ 252kHz
- Frequency - Self Resonant:600kHz
- Ratings:-
- Operating Temperature:-40°C ~ 105°C
- Inductance Frequency - Test:252 kHz
- Features:-
- Mounting Type:Surface Mount
- Package / Case:2220 (5650 Metric)
- Supplier Device Package:-
- Size / Dimension:0.220" L x 0.197" W (5.60mm x 5.00mm)
- Height - Seated (Max):0.209" (5.30mm)

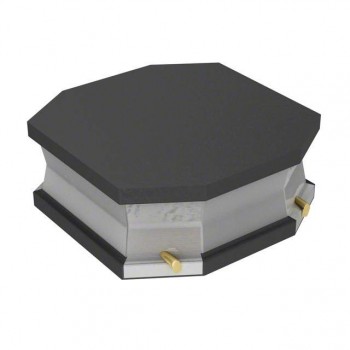

Related Products
