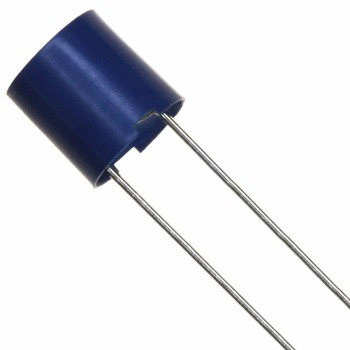

TSL0808RA-6R8M3R1-PF
TDK Corporation
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionFIXED IND 6.8UH 3.1A 25 MOHM TH
- CategoryFixed Inductors
- Datasheet TSL0808RA-6R8M3R1-PF Datasheet
-
ECAD Model
- Share
In Stock: 182
Can ship immediately
Pricing:
Call for price or sumbit a RFQ
Quote It
Technical Details
- Series:TSL
- Package:Cut Tape (CT)Tape & Box (TB)
- Part Status:Obsolete
- Type:-
- Material - Core:-
- Inductance:6.8 µH
- Tolerance:±20%
- Current Rating (Amps):3.1 A
- Current - Saturation (Isat):3.2A
- Shielding:Unshielded
- DC Resistance (DCR):25mOhm Max
- Q @ Freq:10 @ 7.96MHz
- Frequency - Self Resonant:22MHz
- Ratings:-
- Operating Temperature:-20°C ~ 85°C
- Inductance Frequency - Test:1 kHz
- Features:-
- Mounting Type:Through Hole
- Package / Case:Radial, Vertical Cylinder
- Supplier Device Package:-
- Size / Dimension:0.335" Dia (8.50mm)
- Height - Seated (Max):0.346" (8.80mm)
