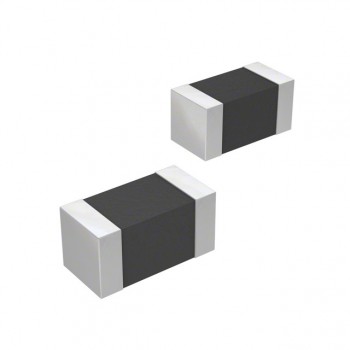

CM160808-2N2DL
J.W. Miller / Bourns
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionFIXED IND 2.2NH 500MA 90MOHM SMD
- CategoryFixed Inductors
- Datasheet CM160808-2N2DL Datasheet
-
ECAD Model
- Share
In Stock: 170
Can ship immediately
Pricing:
Call for price or sumbit a RFQ
Quote It
Technical Details
- Series:CM160808
- Package:Tape & Reel (TR)
- Part Status:Obsolete
- Type:Wirewound
- Material - Core:Alumina
- Inductance:2.2 nH
- Tolerance:±0.3nH
- Current Rating (Amps):500 mA
- Current - Saturation (Isat):-
- Shielding:Unshielded
- DC Resistance (DCR):90mOhm Max
- Q @ Freq:8 @ 100MHz
- Frequency - Self Resonant:6GHz
- Ratings:-
- Operating Temperature:-40°C ~ 100°C
- Inductance Frequency - Test:100 MHz
- Features:-
- Mounting Type:Surface Mount
- Package / Case:0603 (1608 Metric)
- Supplier Device Package:0603 (1608 Metric)
- Size / Dimension:0.063" L x 0.031" W (1.60mm x 0.80mm)
- Height - Seated (Max):0.037" (0.94mm)
