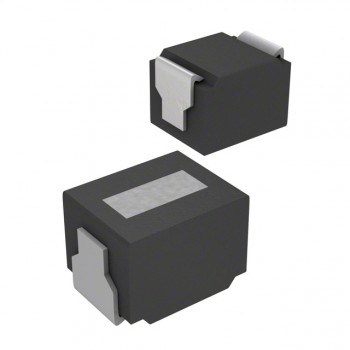

CM252016-R56ML
J.W. Miller / Bourns
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionFIXED IND 560NH 150MA 1.1OHM SMD
- CategoryFixed Inductors
- Datasheet CM252016-R56ML Datasheet
-
ECAD Model
- Share
In Stock: 194
Can ship immediately
Pricing:
Call for price or sumbit a RFQ
Quote It
Technical Details
- Series:CM252016
- Package:Tape & Reel (TR)
- Part Status:Obsolete
- Type:Wirewound
- Material - Core:Ferrite
- Inductance:560 nH
- Tolerance:±20%
- Current Rating (Amps):150 mA
- Current - Saturation (Isat):-
- Shielding:Unshielded
- DC Resistance (DCR):1.1Ohm Max
- Q @ Freq:25 @ 25.2MHz
- Frequency - Self Resonant:150MHz
- Ratings:-
- Operating Temperature:-20°C ~ 100°C
- Inductance Frequency - Test:25.2 MHz
- Features:-
- Mounting Type:Surface Mount
- Package / Case:Nonstandard
- Supplier Device Package:-
- Size / Dimension:0.098" L x 0.079" W (2.50mm x 2.00mm)
- Height - Seated (Max):0.063" (1.60mm)
