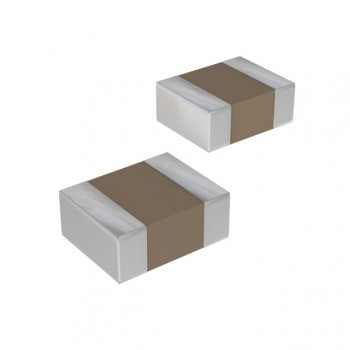

CF322513-1R0K
J.W. Miller / Bourns
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionFIXED IND 1UH 400MA 700 MOHM SMD
- CategoryFixed Inductors
- Datasheet CF322513-1R0K Datasheet
-
ECAD Model
- Share
In Stock: 194
Can ship immediately
Pricing:
Call for price or sumbit a RFQ
Quote It
Technical Details
- Series:CF322513
- Package:Tape & Reel (TR)
- Part Status:Obsolete
- Type:Multilayer
- Material - Core:Ferrite
- Inductance:1 µH
- Tolerance:±10%
- Current Rating (Amps):400 mA
- Current - Saturation (Isat):-
- Shielding:Shielded
- DC Resistance (DCR):700mOhm Max
- Q @ Freq:30 @ 7.96MHz
- Frequency - Self Resonant:120MHz
- Ratings:-
- Operating Temperature:-55°C ~ 125°C
- Inductance Frequency - Test:7.96 MHz
- Features:-
- Mounting Type:Surface Mount
- Package / Case:1210 (3225 Metric)
- Supplier Device Package:1210
- Size / Dimension:0.126" L x 0.098" W (3.20mm x 2.50mm)
- Height - Seated (Max):0.059" (1.50mm)
