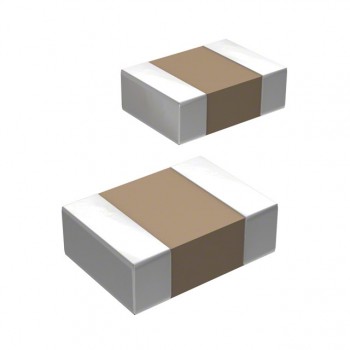

CF453215-R56K
J.W. Miller / Bourns
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionFIXED IND 560NH 520MA 360MOHM SM
- CategoryFixed Inductors
- Datasheet CF453215-R56K Datasheet
-
ECAD Model
- Share
In Stock: 145
Can ship immediately
Pricing:
Call for price or sumbit a RFQ
Quote It
Technical Details
- Series:CF453215
- Package:Tape & Reel (TR)
- Part Status:Obsolete
- Type:Multilayer
- Material - Core:Ferrite
- Inductance:560 nH
- Tolerance:±10%
- Current Rating (Amps):520 mA
- Current - Saturation (Isat):-
- Shielding:Shielded
- DC Resistance (DCR):360mOhm Max
- Q @ Freq:40 @ 25.2MHz
- Frequency - Self Resonant:140MHz
- Ratings:-
- Operating Temperature:-55°C ~ 125°C
- Inductance Frequency - Test:25.2 MHz
- Features:-
- Mounting Type:Surface Mount
- Package / Case:1812 (4532 Metric)
- Supplier Device Package:1812
- Size / Dimension:0.177" L x 0.126" W (4.50mm x 3.20mm)
- Height - Seated (Max):0.067" (1.70mm)
