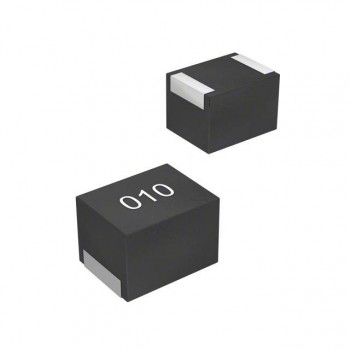

CMH322522-12NML
J.W. Miller / Bourns
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionFIXED IND 12NH 450MA 140MOHM SMD
- CategoryFixed Inductors
- Datasheet CMH322522-12NML Datasheet
-
ECAD Model
- Share
In Stock: 136
Can ship immediately
Pricing:
Call for price or sumbit a RFQ
Quote It
Technical Details
- Series:CMH322522
- Package:Tape & Reel (TR)
- Part Status:Obsolete
- Type:Wirewound
- Material - Core:Ferrite
- Inductance:12 nH
- Tolerance:±20%
- Current Rating (Amps):450 mA
- Current - Saturation (Isat):-
- Shielding:Shielded
- DC Resistance (DCR):140mOhm Max
- Q @ Freq:17 @ 100MHz
- Frequency - Self Resonant:2.3GHz
- Ratings:-
- Operating Temperature:-55°C ~ 125°C
- Inductance Frequency - Test:100 MHz
- Features:-
- Mounting Type:Surface Mount
- Package / Case:1210 (3225 Metric)
- Supplier Device Package:1210
- Size / Dimension:0.126" L x 0.098" W (3.20mm x 2.50mm)
- Height - Seated (Max):0.094" (2.40mm)
